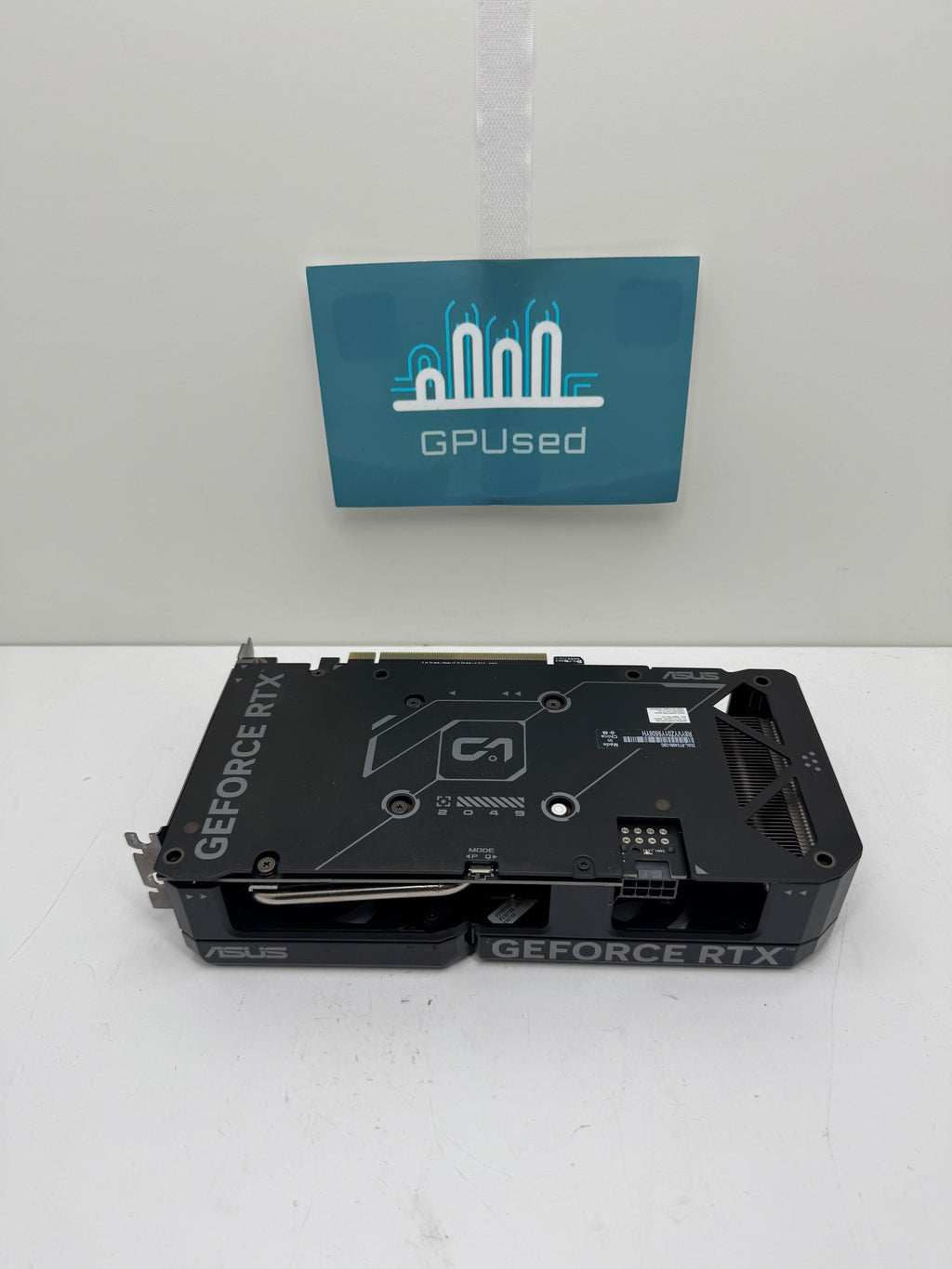

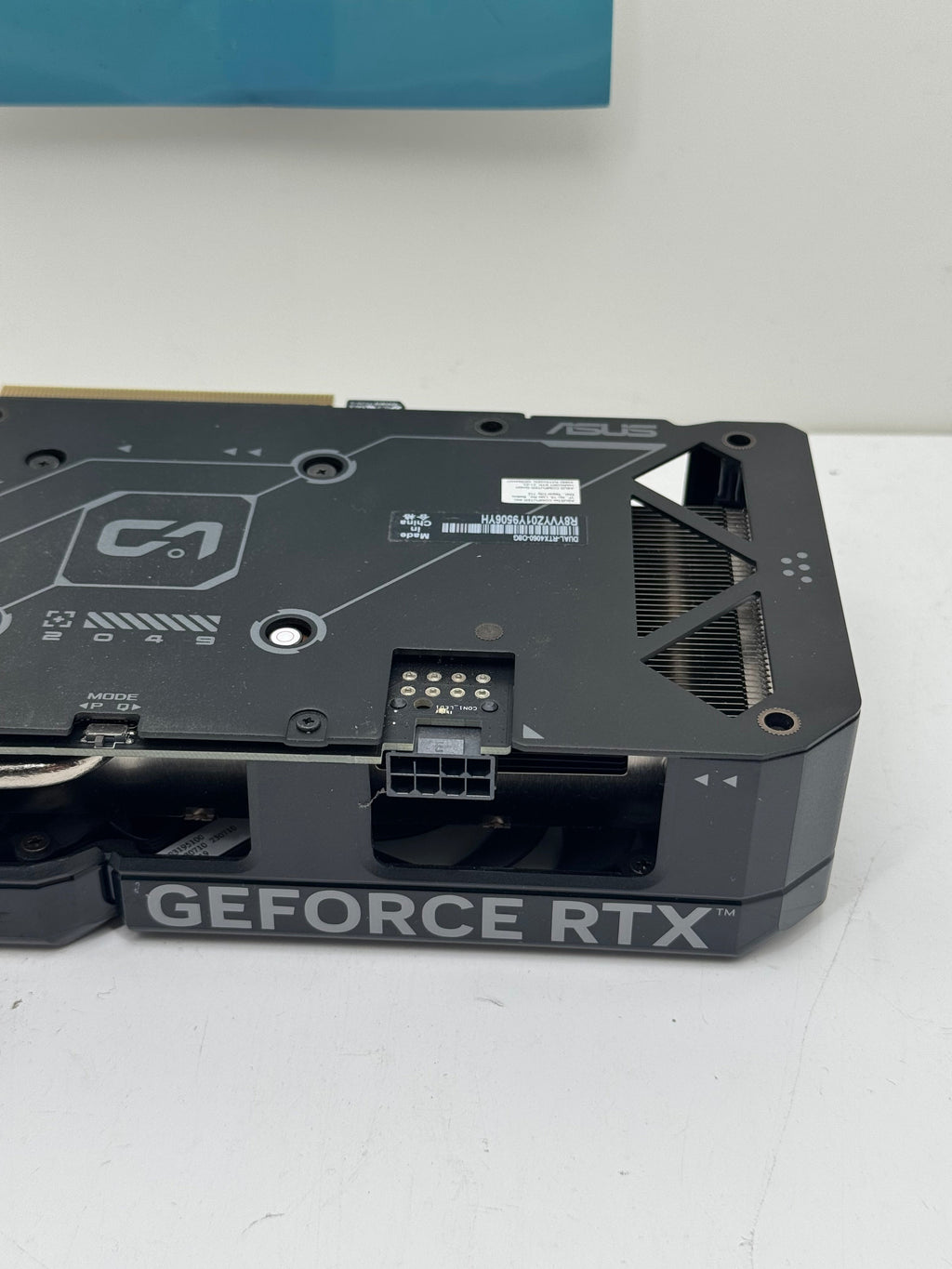

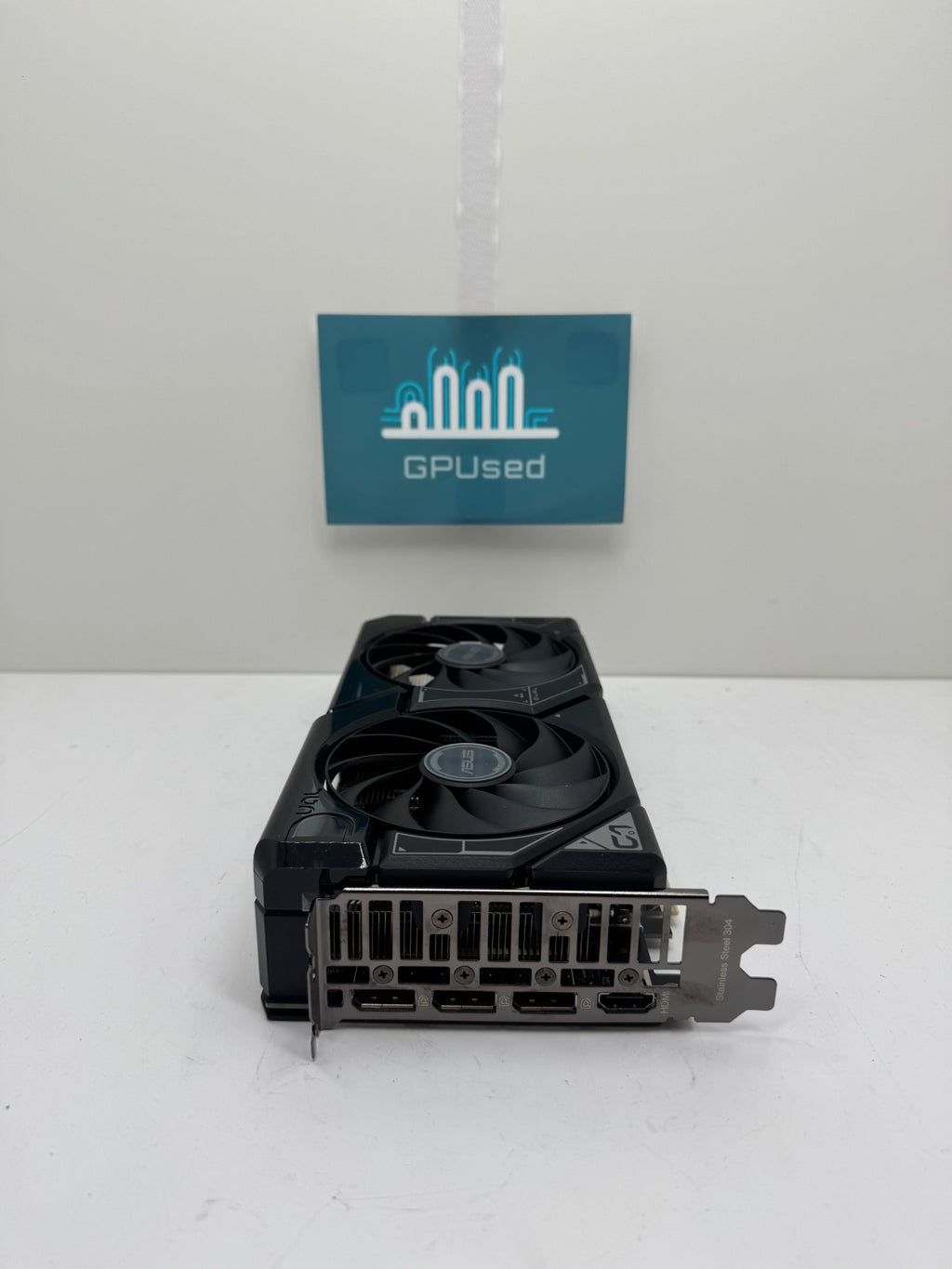

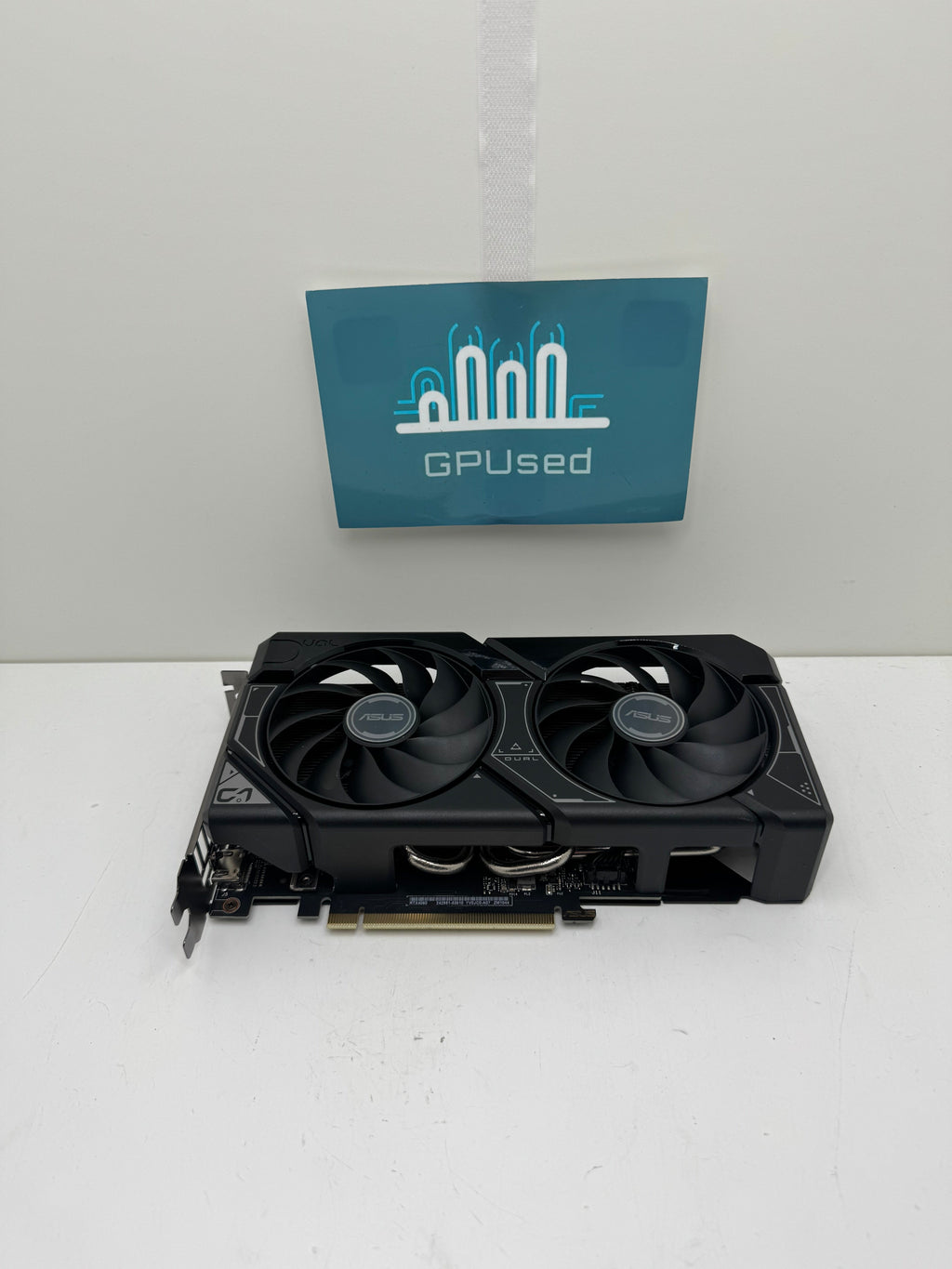

ASUS Nvidia GeForce RTX 4060 Ti Dual OC 8GB GDDR6 - A - Premium Edition
ASUS Nvidia GeForce RTX 4060 Ti Dual OC 8GB GDDR6 - A - Premium Edition
Product Description -
Summary - No box. Tested well. Specifications below -
Graphics Processor
- GPU Name
- AD107
- GPU Variant
- AD107-400-A1
- Architecture
- Ada Lovelace
- Foundry
- TSMC
- Process Size
- 5 nm
- Transistors
- 18,900 million
- Density
- 118.9M / mm²
- Die Size
- 159 mm²
Graphics Card
- Release Date
- May 18th, 2023
- Availability
- Jun 29th, 2023
- Generation
- GeForce 40
- Predecessor
- GeForce 30
- Production
- Active
- Launch Price
- 299 USD
- Bus Interface
- PCIe 4.0 x8
- Reviews
- 43 in our database
Relative Performance
Clock Speeds
- Base Clock
- 1830 MHz
- Boost Clock
- 2460 MHz
- Memory Clock
- 2125 MHz
17 Gbps effective
Memory
- Memory Size
- 8 GB
- Memory Type
- GDDR6
- Memory Bus
- 128 bit
- Bandwidth
- 272.0 GB/s
Render Config
- Shading Units
- 3072
- TMUs
- 96
- ROPs
- 48
- SM Count
- 24
- Tensor Cores
- 96
- RT Cores
- 24
- L1 Cache
- 128 KB (per SM)
- L2 Cache
- 24 MB
Theoretical Performance
- Pixel Rate
- 118.1 GPixel/s
- Texture Rate
- 236.2 GTexel/s
- FP16 (half)
- 15.11 TFLOPS (1:1)
- FP32 (float)
- 15.11 TFLOPS
- FP64 (double)
- 236.2 GFLOPS (1:64)
Board Design
- Slot Width
- Dual-slot
- Length
- 240 mm
9.4 inches
- Width
- 111 mm
4.4 inches
- Height
- 40 mm
1.6 inches
- TDP
- 115 W
- Suggested PSU
- 300 W
- Outputs
- 1x HDMI 2.1
3x DisplayPort 1.4a
- Power Connectors
- 1x 12-pin
- Board Number
- PG190
Graphics Features
- DirectX
- 12 Ultimate (12_2)
- OpenGL
- 4.6
- OpenCL
- 3.0
- Vulkan
- 1.3
- CUDA
- 8.9
- Shader Model
- 6.7
AD107 GPU Notes
| Ray Tracing Cores: 3rd Gen Tensor Cores: 4th Gen NVENC: 8th Gen NVDEC: 5th Gen PureVideo HD: VP12 VDPAU: Feature Set L |
This card has passed several tests. These tests include - A 1 hour run on Furmark (for temperature readings and to ensure stability), one run on each of Unigene’s Heaven and Superposition benchmarks (for performance figures in relation to brand new models) and we only buy cards in once they’ve passed all 3 tests and remained below 75°C, even under the extremely high loads of a 1 hour Furmark test. Finally, we perform a visual check to ensure it’s in good enough aesthetic condition before we buy the product in. This insures we never have stock we’re not happy with, so you never have to worry when buying from us!
All our cards are in good working condition as explained above. However, if you receive your order and it unfortunately doesn’t work, don’t panic, we have a 30 day return window, with money back guarantee. All so you can enjoy the bargain without being worried about any issues.
